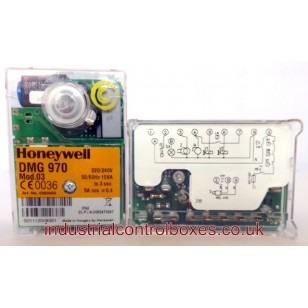

Honeywell Satronic Control Box DMG970-N Mod 03 240v (0450003U).

Honeywell DMG970-N Mod 03 – Microprocessor, electronic components, output relais and flame amplifier are placed on two printed circuit boards.
These plus the lockout- and reset circuit are well protected inside a flame resistant, plug-in type plastic housing.
The reset switch for reset / remote lockout with its built-in LED for displaying the information system. Plus the central fixing screw are placed on top of the housing.
The wiring base S98 is equipped with spare and extra terminals. It allows, together with a variety of cable entry points, utmost flexibility of electrical wiring.
The DMG 970-N is functionally compatible to MMI 810 and MMI 810.1
Please note: Is the DMG 970-N to be used to replace the MMI 810 or 810.1, care has to be taken to make sure the air proving switch (LW) is wired between terminals 4 and 7 and not like on the MMI between 5 and 7.

Datasheet:

Download Datasheet
